Product Details:
Payment & Shipping Terms:
|
Material: | Full Set Stainless Steel 304 | Pack: | All Kind Of Vegetables, Like Iceberg Lettuce, Romain, Spring Onion And Leek |
---|---|---|---|
Suitable: | Fresh Lettuce Packaging Machine | Mating: | Fresh Lettuce Filling Machine |
With: | Fresh Lettuce Packing Machine | Email: | Onepacking@gmail.com |
Whatsapp/viber: | 008613590629511 | Skype: | Coco11283 |
Wechat: | YECO11 | QQ: | 277547358 |
Fresh lettuce packaging machine,Fresh lettuce packing machine,Fresh lettuce filling machine,lettuce salad wrapping ,Bestar green leafy vegetable salad weighting and filling machine ,all kind of vegetables, like iceberg lettuce, romain, spring .
Vegetable packing machine with multi-heads weigher,Vegetable packaging machine with Nitrogen making machine. New design green leafy vegetable salad weighting and packaging machine,with vegetable washing and cuttingmachine ,automatic Fresh vegetables Packing Machine with metal detector machine & Nitrogen making machine.
email :onepacking@gmail.com info@bestarpackaging.com
http://www.bestarpackaging.com http://www.verticalpackagingmachinery.com
Mob/Whatsapp &/Viber:+8613590629511
Skype: coco11283 We chat:YECO11 QQ:277547358
Bestar provide fresh vegetable packaging machine, fresh vegetable flow packing machine,green leafy vegetable salad VFFS machine,Fresh lettuce and cabbage packaging machine,lettuce packaging machine, cabbage packaging machine, packaging machine for lettuce, packing machine for cabbage,all kind of vegetables, like iceberg lettuce, romain, spring onion and leek ect.
Reference packing video:
1.Salad packing machine, leaf vegetable packing machine with Nitrogen making machine from A to Z
2.vegetable packing machine, leaf vegetable packaging machine with multi heads weigher
Hot sell VFFS vertical packaging machinery ! New design for Vertical Form-Fill-Seal Packing Machine with Z type elevator ,the balance weight,product conveyor ect.
This is vertical automatic packaging machine: Fully-automatically complete all the process from feeding, weighing, filling and bag-making, date-printing to finished products outputting;High weighing precision and efficiency;onepacking(at)gmail(dot) com
Application:all kind of vegetables, like iceberg lettuce, romain, spring onion and leek ect.
The units include following parts:
* Large vertical automatic packaging machine.
* Mulithead weigher
* Working platform
* Z type material conveyer
* Vibration feeder
* Finished products conveyer+ check weigher
Packaging Type:: Stand-up Pouch,Bags,Film,Pouch,back sealing.
Machine Full Features:
1) Be able to weight, bag-making, filling, sealing, cutting,lot number automatically.
2) It has color control system which can get the complete trade mark design(photoelectricity control system).
3) The machine fix stepper motor controller,its advantage is precise,needless to adjust other parts
4) Intelligent temperature control by temperature controller to make heat balance better.use bilingual display screen control system and stainless steel cabinet
5) Fine packaging performance ,low noise ,clear sealing texture and strong sealing performance
6) With safe plastic box on rotating blade to avoid hurting operator's hands
7) Need to change new temperature controller,blade& pressing mode only after 3 years continuous operation,2 shifts a day and other parts is still good and safe freely)
8)With printer (to be able to code the date and batch number) and rotating blade(be able to adjust the length of bag and shape of bag notch edge packing
Technical parameters:
Machine type | BSTV-320AZ | BSTV-420AZ | BSTV-520AZ |
Film width | Max.320mm | Max.420mm | Max.520mm |
Bag length | 80-230mm | 80-300mm | 80-350mm |
Bag width | 50-150mm | 60-200mm | 80-250mm |
Film roll diameter | Max.320mm | Max.320mm | Max.320mm |
Packaging speed | 10-60bags/min | 10-60bags/min | 10-50bags/min |
Measurement range | 100-1000ml | 150-1500ml | 150-2000ml |
Film thickness | 0.04-0.08mm | 0.04-0.08mm | 0.04-0.08mm |
Power | 220V, 50/60Hz, 2KVA | 220V, 50/60Hz, 2.2KVA | 220V, 50/60Hz, 3KVA |
Machine size (mm) | (L)1117×(W)1015×(H)1343 | (L)1217×(W)1015×(H)1343 | (L)1488×(W)1080×(H)1490 |
Machine Weight | 600KG | 650KG | 750KG |
Packaging material | OPP/CPP,OPP/CE,PET/AL/PE,Other Laminated films ect hot sealable material | ||
Bag type | Packaging style diversified, pillow back sealing, Gusset Bag, quad seal bag ,continuous bags(bag links), punching | ||
remark | Machine with date printing machine,with touch screen |
Aa manufacturer, we're able to provide you with long term stable performance packing system, multihead weigher, checkweigher, linear weigher, VFFS machine, bucket conveyor, working platform, metal detector... according to your project requirements.
Our Factory since 2001 has been manufacturing the pillow packaging machine ,horizontal flow pack machine, vertical packaging machinery. In these field we have the experience rich enough to solve the questions encountered by our customers from both home and abroad. For more information about various high quality machinery, please contact with us :
email :onepacking@gmail.com info@bestarpackaging.com
http://www.bestarpackaging.com http://www.verticalpackagingmachinery.com
Mob/Whatsapp &/Viber:+8613590629511
Skype: coco11283 We chat:YECO11 QQ:277547358
Follow us by facebook:https://www.facebook.com/bestarpackagingmachinecoco
https://www.facebook.com/bestarpackingmachine
by twitter :https://twitter.com/Bestarpackaging
by youtube :https://www.youtube.com/c/BestarPackaging
by linked in https://cn.linkedin.com/in/bestarpackagingmachinecocoye

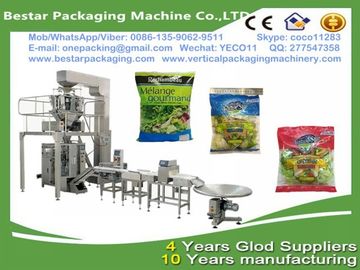

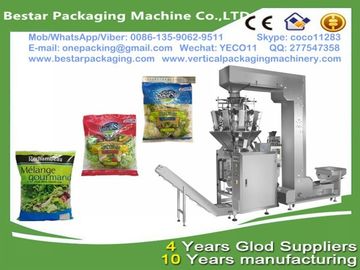

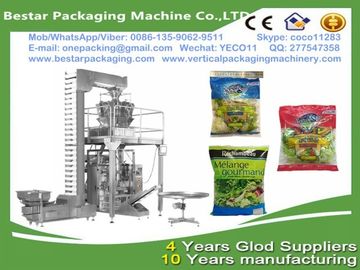

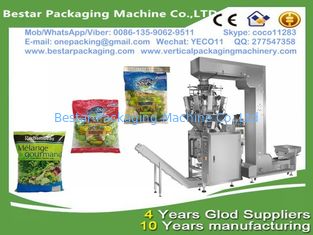

The full set machine
Vegetables packaging samples :
Machine packaging for shipment :
Full set machine Use stretch film wrapping ,then use Fumigation-free splint wooden cases to pack strong.when client receive the machine,just connect the electrify and use is ok .
